AZD3229   Click here for help

GtoPdb Ligand ID: 12703

Synonyms: AZD-3229
PDB Ligand
Compound class: Synthetic organic
Comment: AZD3229 is a lead dual KIT/PDGFRα inhibitor [1]. It was designed for potential to treat gastrointestinal stromal tumours driven by mutations in KIT or platelet-derived growth factor α (PDGFRα).

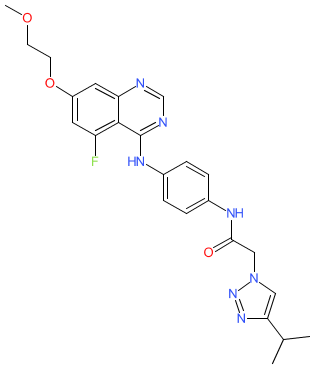

2D Structure
Click here for help

2D Structure

An image of the ligand's 2D structure. For small molecules with SMILES these are drawn using the NCI/CADD Chemical Identifier Resolver. Click on the image to access the chemical structure search tool with the ligand pre-loaded in the structure editor. For other types of ligands, e.g. longer nucleotides and peptides, a manually drawn representation of the molecule may be provided.

✖
Click here for structure editor
Physico-chemical Properties
Click here for help

Physico-chemical Properties

Calculated molecular properties are available for small molecules and natural products (not peptides). Properties were generated using the CDK toolkit. All properties were selected to enable the prediction of the Lipinski Rule-of-Five profile or ‘druglikeness’ for each ligand. For more info on each category see the help pages.

✖
Hydrogen bond acceptors 10
Hydrogen bond donors 2
Rotatable bonds 11
Topological polar surface area 112.27
Molecular weight 479.51
XLogP 0.35
No. Lipinski's rules broken 0
SMILES / InChI / InChIKey
Click here for help

SMILES / InChI / InChIKey

SMILES (Simplified Molecular Input Line Entry Specification) A specification for unambiguously describing the structure of chemical molecules using short ASCII strings. Canonical SMILES specify a unique representation of the 2D structure without chiral or isotopic specifications. Isomeric SMILES include chiral specification and isotopes.

Standard InChI (IUPAC International Chemical Identifier) and InChIKey InChI is a non-proprietary, standard, textual identifier for chemical substances designed to facilitate linking of information and database searching. An InChIKey is a simplified version of a full InChI, designed for easier web searching.

✖
Canonical SMILES CC(C)C1=CN(CC(=O)NC2=CC=C(C=C2)NC3=C4C(=CC(=CC4=NC=N3)OCCOC)F)N=N1
Isomeric SMILES FC1=C2C(N=CN=C2NC3=CC=C(NC(CN4C=C(C(C)C)N=N4)=O)C=C3)=CC(OCCOC)=C1
InChI InChI=1S/C24H26FN7O3/c1-15(2)21-12-32(31-30-21)13-22(33)28-16-4-6-17(7-5-16)29-24-23-19(25)10-18(35-9-8-34-3)11-20(23)26-14-27-24/h4-7,10-12,14-15H,8-9,13H2,1-3H3,(H,28,33)(H,26,27,29)
InChI Key FLJOFQUXYAWOPE-UHFFFAOYSA-N
Classification Click here for help
Compound class Synthetic organic
IUPAC Name Click here for help
N-[4-[[5-fluoro-7-(2-methoxyethoxy)quinazolin-4-yl]amino]phenyl]-2-(4-propan-2-yltriazol-1-yl)acetamide
Synonyms Click here for help
AZD-3229
Database Links Click here for help
BindingDB Ligand 50459416
ChEMBL Ligand CHEMBL4216473
GtoPdb PubChem SID 483123251
PubChem CID 134814269
RCSB PDB Ligand F8H
Search Google for chemical match using the InChIKey FLJOFQUXYAWOPE-UHFFFAOYSA-N
Search Google for chemicals with the same backbone FLJOFQUXYAWOPE
UniChem Compound Search for chemical match using the InChIKey FLJOFQUXYAWOPE-UHFFFAOYSA-N
UniChem Connectivity Search for chemical match using the InChIKey FLJOFQUXYAWOPE-UHFFFAOYSA-N
