elunonavir   Click here for help

GtoPdb Ligand ID: 11667

Compound class: Synthetic organic
Comment: The chemical structure for elunonavir was obtained from WHO Proposed list 125. The IUPAC>SMILES conversion maps to PubChem CID 135301900. Via SureChEMBL we can trace this compound to a Gilead Sciences patent that claims antiviral compounds for the treatment of HIV [1]. From the patent it would appear that elunonavir is an HIV protease inhibitor.
2D Structure
Click here for help

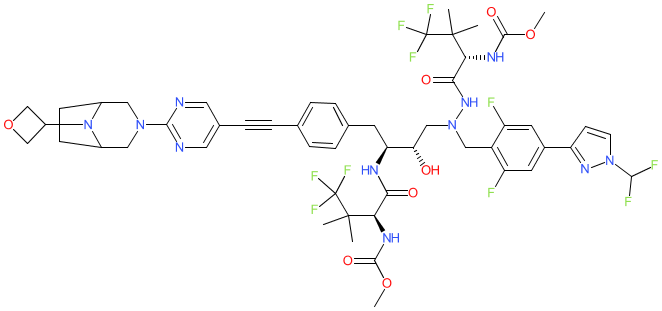

2D Structure

An image of the ligand's 2D structure. For small molecules with SMILES these are drawn using the NCI/CADD Chemical Identifier Resolver. Click on the image to access the chemical structure search tool with the ligand pre-loaded in the structure editor. For other types of ligands, e.g. longer nucleotides and peptides, a manually drawn representation of the molecule may be provided.

✖
Click here for structure editor
Physico-chemical Properties
Click here for help

Physico-chemical Properties

Calculated molecular properties are available for small molecules and natural products (not peptides). Properties were generated using the Chemistry Development Kit (CDK) (Willighagen EL et al. Journal of Cheminformatics vol. 9:33. 2017, doi:10.1186/s13321-017-0220-4; https://cdk.github.io/). All properties were selected to enable the prediction of the Lipinski Rule-of-Five profile or ‘druglikeness’ for each ligand. For more info on each category see the help pages.

✖
Hydrogen bond acceptors 18
Hydrogen bond donors 5
Rotatable bonds 27
Topological polar surface area 217.64
Molecular weight 1155.44
XLogP 8.47
No. Lipinski's rules broken 3

Generated using the Chemistry Development Kit (CDK) (Willighagen EL et al. Journal of Cheminformatics vol. 9:33. 2017, doi:10.1186/s13321-017-0220-4; https://cdk.github.io/)
SMILES / InChI / InChIKey
Click here for help

SMILES / InChI / InChIKey

SMILES (Simplified Molecular Input Line Entry Specification) A specification for unambiguously describing the structure of chemical molecules using short ASCII strings. Canonical SMILES specify a unique representation of the 2D structure without chiral or isotopic specifications. Isomeric SMILES include chiral specification and isotopes.

Standard InChI (IUPAC International Chemical Identifier) and InChIKey InChI is a non-proprietary, standard, textual identifier for chemical substances designed to facilitate linking of information and database searching. An InChIKey is a simplified version of a full InChI, designed for easier web searching.

Generated using the Chemistry Development Kit (CDK) (Willighagen EL et al. Journal of Cheminformatics vol. 9:33. 2017, doi:10.1186/s13321-017-0220-4; https://cdk.github.io/)

✖
Canonical SMILES COC(=O)N[C@@H](C(C(F)(F)F)(C)C)C(=O)N[C@H]([C@H](CN(Cc1c(F)cc(cc1F)c1ccn(n1)C(F)F)NC(=O)[C@H](C(C(F)(F)F)(C)C)NC(=O)OC)O)Cc1ccc(cc1)C#Cc1cnc(nc1)N1CC2CCC(C1)N2C1COC1
Isomeric SMILES CC(C)([C@@H](C(=O)N[C@@H](Cc1ccc(cc1)C#Cc1cnc(nc1)N1CC2CCC(C1)N2C1COC1)[C@H](CN(Cc1c(cc(cc1F)c1nn(cc1)C(F)F)F)NC(=O)[C@H](C(C)(C)C(F)(F)F)NC(=O)OC)O)NC(=O)OC)C(F)(F)F
InChI InChI=1S/C52H59F10N11O8/c1-49(2,51(57,58)59)41(66-47(77)79-5)43(75)65-39(17-29-10-7-28(8-11-29)9-12-30-20-63-46(64-21-30)70-22-32-13-14-33(23-70)73(32)34-26-81-27-34)40(74)25-71(69-44(76)42(67-48(78)80-6)50(3,4)52(60,61)62)24-35-36(53)18-31(19-37(35)54)38-15-16-72(68-38)45(55)56/h7-8,10-11,15-16,18-21,32-34,39-42,45,74H,13-14,17,22-27H2,1-6H3,(H,65,75)(H,66,77)(H,67,78)(H,69,76)/t32?,33?,39-,40-,41+,42+/m0/s1
InChI Key ZTSLYWLHCOINNI-FTEFBJIISA-N

Generated using the Chemistry Development Kit (CDK) (Willighagen EL et al. Journal of Cheminformatics vol. 9:33. 2017, doi:10.1186/s13321-017-0220-4; https://cdk.github.io/)
Classification Click here for help
Compound class Synthetic organic
IUPAC Name Click here for help
methyl N-[(2S)-1-[2-[[4-[1-(difluoromethyl)pyrazol-3-yl]-2,6-difluorophenyl]methyl]-2-[(2S,3S)-2-hydroxy-4-[4-[2-[2-[8-(oxetan-3-yl)-3,8-diazabicyclo[3.2.1]octan-3-yl]pyrimidin-5-yl]ethynyl]phenyl]-3-[[(2S)-4,4,4-trifluoro-2-(methoxycarbonylamino)-3,3-dimethylbutanoyl]amino]butyl]hydrazinyl]-4,4,4-trifluoro-3,3-dimethyl-1-oxobutan-2-yl]carbamate
International Nonproprietary Names Click here for help
INN number INN
11828 elunonavir
Database Links Click here for help
CAS Registry No. 2242428-57-3 (source: WHO INN record)
GtoPdb PubChem SID 442878693
PubChem CID 135301900
Search Google for chemical match using the InChIKey ZTSLYWLHCOINNI-FTEFBJIISA-N
Search Google for chemicals with the same backbone ZTSLYWLHCOINNI
Search PubMed clinical trials elunonavir
Search PubMed titles elunonavir
Search PubMed titles/abstracts elunonavir
UniChem Compound Search for chemical match using the InChIKey ZTSLYWLHCOINNI-FTEFBJIISA-N
UniChem Connectivity Search for chemical match using the InChIKey ZTSLYWLHCOINNI-FTEFBJIISA-N
